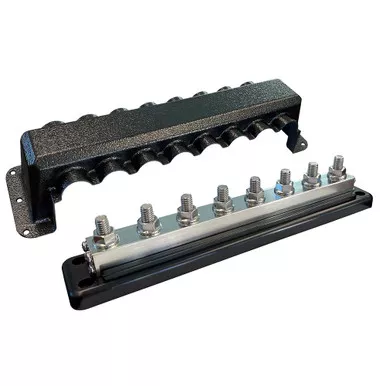

Victron 600A 8-Post Busbar with Terminals

Description

The Victron 600A 8-Post Busbar provides a centralized high-current connection point for battery cables, DC distribution equipment, inverters, chargers, and other heavy electrical loads. Using a dedicated busbar keeps multiple high-current connections organized and reduces the need to stack numerous cable lugs directly on battery terminals or equipment studs.

This model is rated for 600 amps and provides eight 3/8-inch connection points plus eight M8 terminals, giving installers flexibility when combining large battery cables with branch connections and accessory feeds. The removable protective cover helps shield the energized hardware from accidental contact and reduces the chance of tools or loose conductive objects bridging exposed terminals.

A high-current busbar is especially useful in marine, RV, and off-grid installations where several charging and load circuits share the same battery bank. Correct cable sizing, terminal torque, overcurrent protection, and secure mounting remain essential because the busbar itself becomes a central point for substantial system current.

For systems that need a clean, serviceable 600A distribution point with multiple heavy-duty connection locations, this Victron busbar provides a straightforward solution. More options in our power distribution & bus bars.
