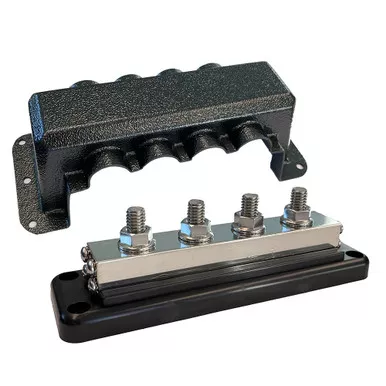

Victron 600A 4-Post Busbar with Terminals

Description

The Victron 600A 4-Post Busbar provides a centralized high-current connection point for batteries, inverters, chargers, DC distribution equipment, and other heavy electrical loads. A dedicated busbar helps keep major DC connections organized and avoids stacking multiple large cable lugs directly on battery terminals or individual equipment studs.

This model is rated for 600 amps and provides four 3/8-inch connection points plus four M8 terminals, giving installers flexibility for a mixture of large conductors and branch connections. The removable protective cover helps shield the energized hardware from accidental contact and reduces the risk of a tool or loose conductive object bridging exposed terminals.

High-current busbars are particularly useful in marine, RV, and off-grid electrical systems where several major loads and charging sources share one battery bank. Correct cable sizing, terminal torque, overcurrent protection, and secure mounting should be planned around the full system current.

For installations that need a compact 600A distribution point with multiple heavy-duty connection locations and a protective cover, this Victron busbar provides a clean and serviceable solution. See what else we carry in power distribution & bus bars.
