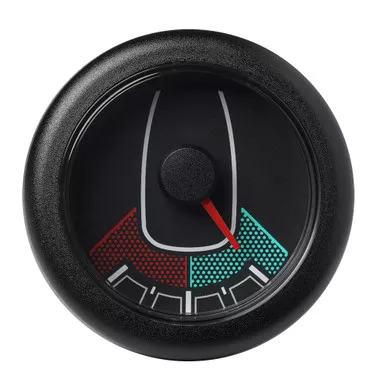

Veratron OceanLink Rudder Angle Gauge 52mm Black

Description

The Veratron OceanLink Rudder Angle Gauge, 52mm, Black dial and bezel, reads left/right rudder position and connects straight to an OceanLink Master unit over Veratron’s patented EasyLink serial bus, avoiding the separate point-to-point wiring a traditional rudder sensor setup would need.

A single Tachometer or GPS Speedometer master can daisy-chain up to 16 EasyLink gauges together, so this rudder gauge slots into an existing OceanLink network alongside other instruments rather than needing its own dedicated wiring run. An AMP Superseal connector handles the EasyLink link itself, and a wide 270-degree pointer sweep gives fine resolution across the gauge’s reading range.

52mm hole diameter, 12/24V, operating range -20°C to +70°C. Includes bezel, rubber seal, and spinlock. Sold individually.

Find more in our marine gauges.

• Left/right rudder position reading via EasyLink serial bus
• Up to 16 gauges daisy-chained per master unit
• 270-Degree pointer sweep for fine reading resolution
• IPX5 rated front and rear
