Veratron OceanLink Engine Trim Gauge 52mm Black

Description

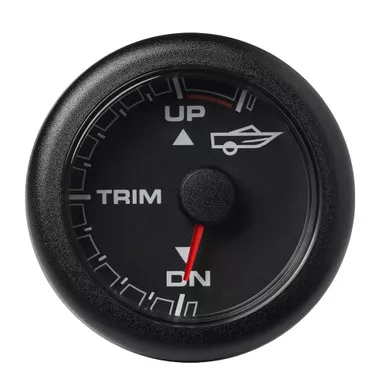

The Veratron OceanLink Engine Trim Gauge, 52mm, Black dial and bezel, reads outboard or sterndrive trim position and connects into an OceanLink instrument panel through Veratron’s patented EasyLink serial bus, the same daisy-chain system used across the rest of the OceanLink 52mm lineup.

A single Tachometer or GPS Speedometer master can support up to 16 daisy-chained EasyLink gauges, so adding trim monitoring to an existing panel doesn’t require a separate dedicated wiring run back to the helm. A 270-degree pointer sweep spreads the trim reading across a wide arc for easy at-a-glance reading rather than compressing it into a narrow, hard-to-read range.

52mm hole diameter, 12/24V, operating range -20°C to +70°C. Includes bezel, rubber seal, and spinlock. Sold individually.

Worth comparing against our other marine gauges.

• Engine trim position reading via EasyLink serial bus
• 270-Degree pointer sweep for clear reading
• Reverse polarity protection
• IPX5 rated front and rear
