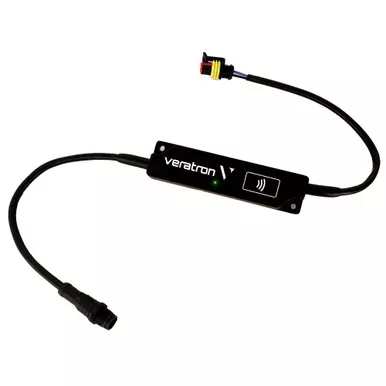

Veratron LinkUp J1939 to NMEA 2000 Gateway

Description

The Veratron LinkUp J1939 to NMEA 2000 Gateway upgrades a single J1939-based sensor to NMEA 2000 output, letting an existing sensor’s data reach a modern NMEA 2000 network without replacing the sensor itself or running new dedicated wiring for it.

Configuration happens through either the built-in wireless interface or directly over NMEA 2000 using Veratron’s Configuration Tool, giving an installer flexibility in how they set it up depending on what tools are on hand. ISO 8846:1990 compliance and an explosion-proof housing mean this gateway is rated for engine room installation, not just a protected electronics bay, and it draws no external power supply, pulling everything it needs straight from the network itself.

Standard DeviceNet M12 plug for NMEA 2000 interface, SAE J1939 input signal, 12V nominal. Sold individually.

Take a look through our marine networking.

• Upgrades a single J1939 sensor to NMEA 2000 output
• Draws all power from the network, no separate supply
• Configured wirelessly through a companion phone app
• Explosion-proof housing rated for engine room installation
• Waterproof sensor connection
