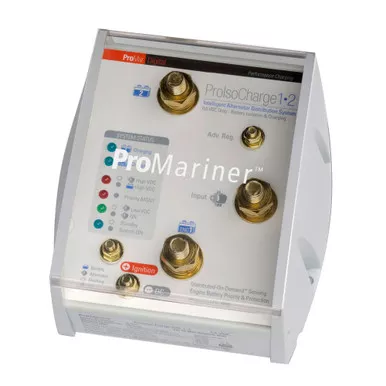

ProMariner ProIsoCharge 120A 2-Battery Isolator

Description

The ProMariner ProIsoCharge 120 1•2 is an intelligent 12V alternator distribution system that charges two battery banks from one alternator while keeping the engine-start battery protected. Its all-digital architecture replaces the basic behavior of a traditional diode isolator with active battery-status monitoring and software-controlled charging decisions.

Rated for up to 120 amps, the ProIsoCharge uses zero-voltage-loss isolation so valuable alternator voltage is not lost across a conventional diode splitter. This helps connected batteries receive a more complete charging voltage and can support faster recovery. The control logic can remove a fully charged bank from the charging path and prioritize a bank that is under load or more deeply discharged, while continuing to safeguard the engine-start battery.

LED indicators provide real-time information for alternator power and battery-bank charging status. Fault LEDs alert the operator to high or low alternator output, over-voltage protection conditions, and excessive voltage present on a connected bank. Ignition-controlled Distributed On Demand battery management activates only when ignition power is present.

An advanced-regulator remote-sense connection is provided for systems using alternators with external regulation. The modular enclosure is designed for straightforward installation and includes terminal-stud insulator boots plus a protective snap-on safety cover around the high-current connections.

The unit is ignition protected and rated IP66, making it appropriate for demanding marine installations. For boats with separate starting and house banks that need efficient 120A alternator charging without the normal voltage loss of a diode isolator, the ProIsoCharge 120 1•2 provides a sophisticated integrated solution. See the rest of our battery isolators & charging relays.
