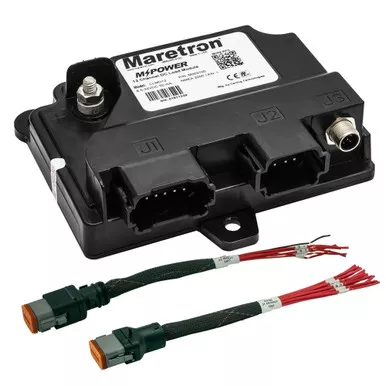

Maretron MPower 12-Channel DC Load Module with Cable

Description

The Maretron MPower 12-Channel DC Load Module, with 12″ pigtail adapter cable for J1/J2 connectors, gives smaller vessels compact, capable circuit control, two of its twelve breakers rated to 12 amps, six to 10 amps, and four to 5 amps, for a combined 75-amp capacity.

Circuits can be paralleled for higher-draw loads, and Maretron’s N2KAnalyzer V3 software lets an installer dial down any of the 12 breakers to trip at a lower threshold, protecting a delicate circuit that a standard trip point would leave exposed. Up to 7 hard-wired switch inputs handle everything from manual breaker control to bilge alarm or hatch position monitoring, and the module reports real-time current draw through each breaker, flagging both overcurrent faults and undercurrent conditions like a burnt-out bulb before they become a bigger problem.

Compare with our other marine networking.

• 12 Breakers, 75A total capacity, individually adjustable trip levels
• Reports real-time current draw per breaker
• Up to 7 hard-wired switch inputs
• IP67 rated and ignition protected, isolated from the NMEA 2000 network to prevent ground loops
