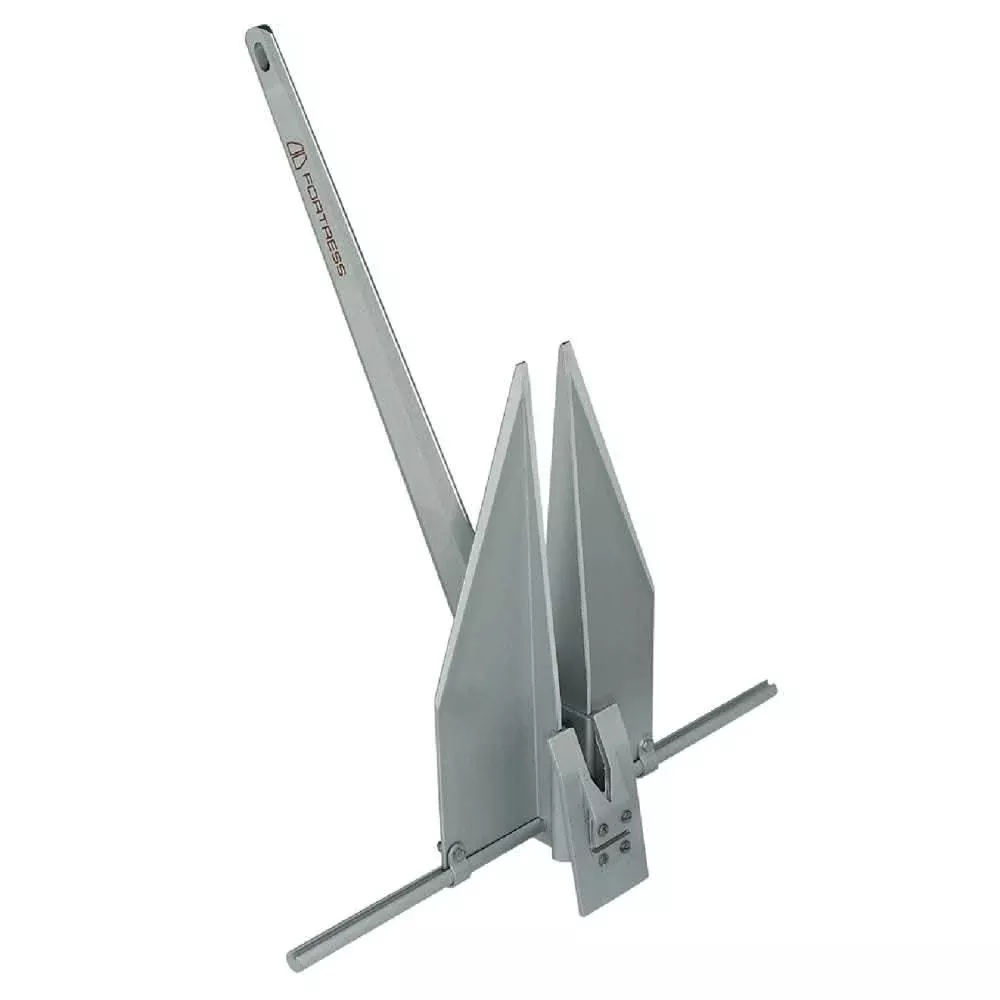

Fortress FX-16 Anchor – 10LB [FX-16]

Description

FX-16 Anchor – 10lb

For over three decades, the much lighter Fortress Anchor has out-performed substantially heavier steel anchors in holding power tests conducted all around the world.  In the US Navy tests, not only did the Fortress out-perform heavier steel anchors, they were also able to withstand pull loads that averaged over 200x their own weight.

Fortress Anchors are constructed using a high-tensile, corrosion-resistant, aluminum magnesium alloy. This results in a lighter, easy to handle anchor with superior holding power.

The anchors have been designed to be easily disassembled for compact storage, or as a spare and/or a storm anchor.  All Fortress Anchors are precision-machined for sharpness and quick penetration into common sea bottoms, which ensures faster setting-performance.

Fortress Marine Anchors offers a 100% Hassle-Free Lifetime Parts Replacement Warranty.

*Made in the U.S.A.

Features:

• Award Winning Design
• Highest rating in tests worldwide
• Hardened high-tech aluminum magnesium alloy
• Adjustable fluke angles: 32°  for common bottoms, 45° for soft mud
• Easily disassembled for easy storage
• Easy to manage weight
• Tough anodized finish

Technical Specifications:

• Size of Boat – 33′ to 38′ (10 to 12 M)
• Style – Fluke
• Material – Aluminum magnesium alloy
• Working Load – 1,250lb (567kg)
• Shank Length – 31″ (787mm)
• Fluke Length – 18″ (457mm)
• Stock Length – 25″ (635mm)
• Weight – 10lbs (4.5kg)

*Sold as an Individual

Specifications:

• Weight (lbs): 10
• Construction: Aluminum Alloy
• Color: Aluminum
• Box Dimensions: 3″H x 7″W x 32″L WT: 11.6 lbs
• UPC: 647124120162

Quick Guide (pdf)
Brochure (pdf)
