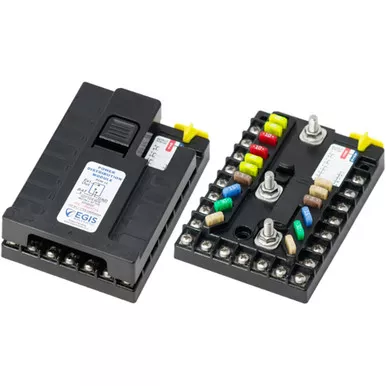

Egis PDM 14-Circuit 175A Power Distribution Module

Description

The Egis PDM 14-Circuit 175A Power Distribution Module combines battery protection, power switching, circuit protection, a ground bus, and kill-switch capability in one compact 12V distribution platform. It is designed for professional installations that need to manage multiple switched and always-on circuits without building the same functionality from separate fuse blocks, relays, and control modules.

The module supports a total continuous output of 175 amps and includes three high-power 45A circuits. Three output groups can be configured independently for 24/7 power, ignition-switched operation, or delayed shutdown, allowing installers to separate essential loads from equipment that should turn off with the key or remain powered temporarily after shutdown.

Time-delay settings can be adjusted from immediate shutdown up to 10 hours, while programmable low-voltage protection between 11V and 12.2V helps prevent accessory loads from draining the battery too deeply. Off-load current draw is only about 1.3mA, helping preserve battery capacity while the system is idle.

The platform can be expanded to as many as 31 fused outputs with compatible RT or CT fuse blocks. For 12V marine, emergency, specialty-vehicle, or mobile installations that need compact high-current distribution with configurable switching and battery protection, the Egis PDM provides a highly integrated solution. See what else we carry in power distribution & bus bars.
