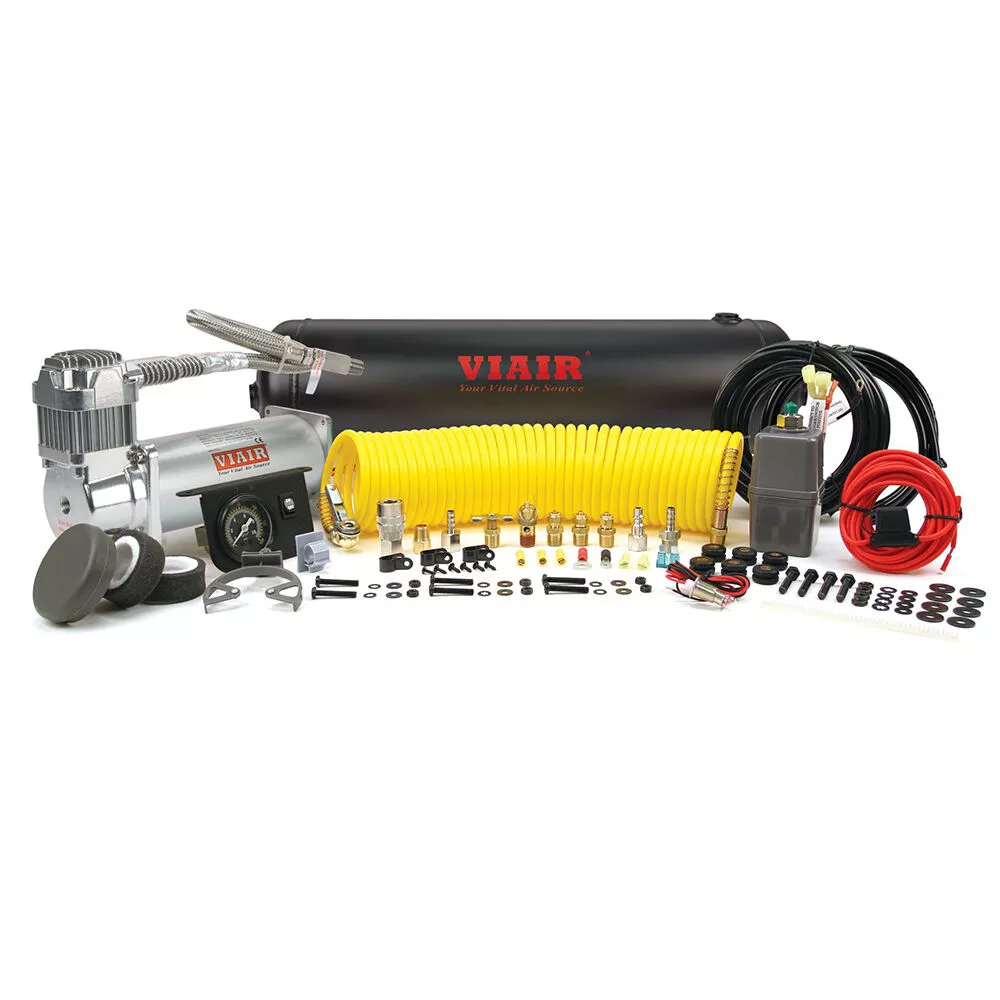

Constant Duty Onboard Air System

Description

VIAIR’s Constant Duty Onboard Air System is a pre-packaged compressed air solution that provides a 100% duty cycle 450C compressor, 2.5 gallon air tank, and all components needed to install a working system capable of inflating tires.Please Note: Use thread sealant for proper installation. Teflon tape is not recommended. Properly sealed, recommended torque for 1/8″ is 10 ~ 11 ft. lbs. Recommended torque for 1/4″ and 3/8″ is 16 ~ 18 ft. lbs.Included Parts:Reducer: 1/8” (F) to 1/4” (M). 1/4” Quick Connect Stud (F). 1/4” Quick Connect Coupler (F). 1/4” 175 PSI Safety Valve. 1/4” Drain Cock. (3) 1/4” Compression Fittings. 20ft. 12-Gauge Wire with Inline Fuse Holder. 4” Strip of Continuous Grommet Material. Accessory Airline. Electrical ConnectionsAll Fittings are NPT rated unless otherwise noted.FEATURES• 2.5 Gallon VIAIR Air Tank• 450C VIAIR Compressor• 35ft. Coil Hose with Tire Chuck• Dash Panel Gauge with ON/OFF Switch• Pressure Switch with Relay (110 PSI on, 145 PSI off)SPECIFICATIONSUnit Weight: 32.00 lbBrand: Viair CorporationMFG Part No.: 10007
