Bluewater 22mm Momentary Push Button Switch, 1-Ft Lead

Sale!
Bluewater 22mm Momentary Push Button Switch, 1-Ft Lead

Bluewater 22mm Momentary Push Button Switch, 1-Ft Lead

Original price was: $56.00.Current price is: $34.37.

Category:

Description

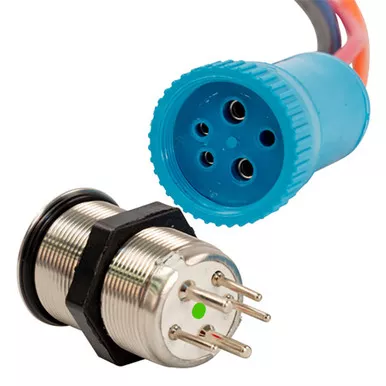

The Bluewater 22mm Momentary Push Button Switch provides temporary control for marine accessories that should operate only while the button is pressed. Its Off-(On) momentary contact works well for horns, lifts, actuators, and similar functions.

The switch is backlit blue when off and changes to red when activated, giving operators clear visual confirmation. The stainless-steel-plated body and included gasket help achieve an IP69K waterproof rating for exposed dashboards and marine control panels.

The switch is rated for 20A on 12-24VDC systems, with a mechanical life of 50,000 cycles and an electrical life of 10,000 cycles. A 1-foot lead is included. Installation requires a 22mm hole in material up to 6mm thick, followed by connection of the color-coded switch and LED contacts. Browse more marine electrical switches.
