Bluewater 22mm Double Momentary Switch, 4-Ft Lead

Sale!
Bluewater 22mm Double Momentary Switch, 4-Ft Lead

Bluewater 22mm Double Momentary Switch, 4-Ft Lead

Original price was: $59.20.Current price is: $36.48.

Category:

Description

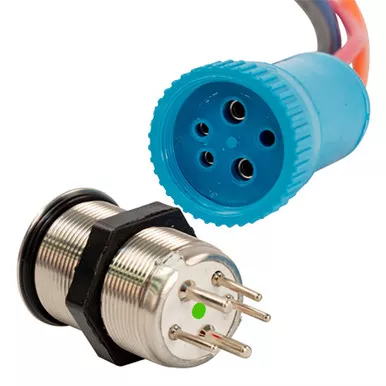

The Bluewater 22mm Double Momentary Push Button Switch provides two momentary ON functions from a single compact stainless-steel control. Its Off-(On)-(On) contact arrangement is well suited to marine accessories such as trim devices, lifts, actuators, and other equipment requiring momentary operation in two directions.

The LED ring is blue when off, green at the first momentary position, and red at the second, providing clear visual feedback. A stainless-steel-plated body and included gasket help achieve an IP69K waterproof rating for exposed marine environments.

The switch is rated for 20A on 12-24VDC systems, with a 50,000-cycle mechanical life and a 10,000-cycle electrical life. A 4-foot lead is included. Installation requires a 22mm hole in material up to 6mm thick and connection of the color-coded switch and LED contacts. We carry more in our marine electrical switches.
