Bluewater 22mm Double Momentary Switch, 1-Ft Lead

Sale!
Bluewater 22mm Double Momentary Switch, 1-Ft Lead

Bluewater 22mm Double Momentary Switch, 1-Ft Lead

Original price was: $56.00.Current price is: $30.56.

Category:

Description

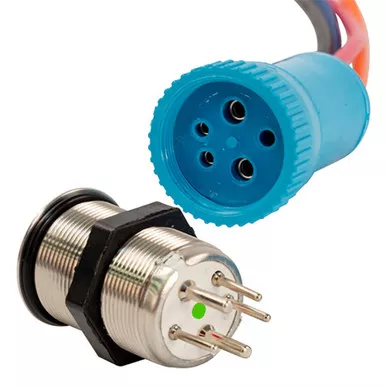

The Bluewater 22mm Double Momentary Push Button Switch provides two momentary ON functions from one compact stainless-steel marine control. Its Off-(On)-(On) contact arrangement is useful for trim devices, lifts, actuators, and other accessories requiring temporary operation in two directions.

The LED ring is blue when off, green at the first momentary position, and red at the second, providing clear status feedback. The stainless-steel-plated body and included gasket help provide an IP69K waterproof rating.

The switch is rated for 20A on 12-24VDC systems and offers a 50,000-cycle mechanical life with a 10,000-cycle electrical life. A 1-foot lead is included. Installation requires a 22mm mounting hole in material up to 6mm thick, followed by connection of the color-coded button and LED contacts. Compare with our other marine electrical switches.
