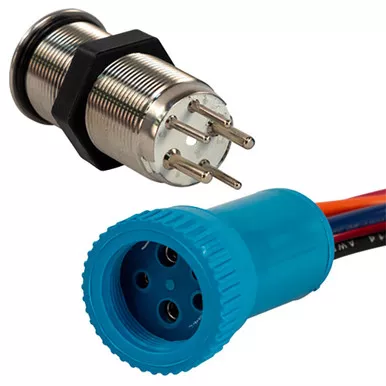

The Bluewater 19mm In-Rush Nav/Anchor Push Button Switch provides compact navigation and anchor-light control for marine dashboards. Its Nav/Anchor contact layout combines two lighting functions in one stainless-steel push-button switch while maintaining a clean, modern helm appearance.

The LED ring uses blue illumination when off, green for the first ON position, and red for the second ON position, providing clear visual status. The stainless-steel-plated body and included gasket help give the switch an IP69K waterproof rating.

The switch is rated for 15A on 12-24VDC systems, with a mechanical life of 50,000 cycles and an electrical life of 10,000 cycles. A 4-foot lead is included. Installation requires a 19mm hole in material up to 6mm thick, followed by connection of the color-coded button and LED contacts. Worth comparing against our other marine electrical switches.
