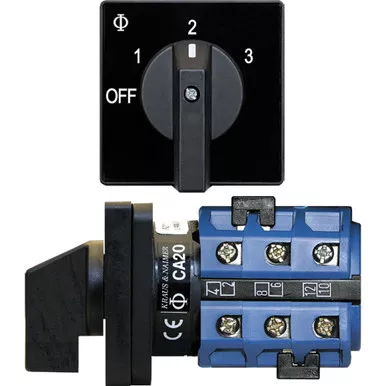

Blue Sea 9010 AC 120V 32A Rotary Selector Switch

Description

The Blue Sea 9010 AC Rotary Selector Switch provides manual selection between two compatible AC sources when circuit protection is installed elsewhere. Its three-position-plus-Off operating sequence and two-pole design make it useful for shore power, generator, or other 120V or 230V source-transfer applications.

The heavy-duty industrial-rated mechanism is designed for intuitive one-hand operation and gives the operator a clear mechanical indication of the selected source. The compact body mounts in panels up to approximately 0.16 inches thick, making it practical for custom electrical panels where available space is limited.

Blue Sea rates the switch for 32A and UL lists the platform for applications up to 600V AC. Because the 9010 is a selector rather than a circuit breaker, correctly sized over-current and leakage protection must be included elsewhere in the system. For boats that need a compact industrial-quality manual transfer switch between two AC sources, the 9010 provides a straightforward switching component. See the rest of our marine electrical switches.
