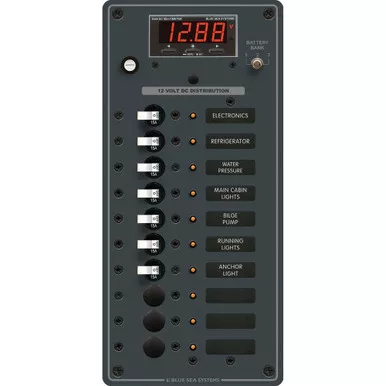

Blue Sea 8402 DC 10 Position Panel with Multi-Meter

Description

The Blue Sea Systems 8402 is a 10 position DC panel with a multi-function meter, rated 12 or 24 volts at up to 100A. Ten circuits with full metering fits a boat where the DC list is short but you still want to see what is happening: a cruising sailboat, or a center console with a decent electronics package.

One meter reads more than one value, and its toggle switch swings it across up to three battery banks, so house, start and a thruster or windlass bank are all checkable from the same spot. Panels supplied with analog meters can be moved to 24 volts by the owner later using the 8240 or 8243 units, which keeps the panel usable through a repower.

Positive, negative and grounding buses are installed and the panel ships fully pre-wired. Circuit labels are backlit as standard, ON indicating LEDs are fitted throughout. Construction is heavy 1/8 inch 5052 aluminum in two-part polyurethane slate gray over MIL-C-5541C or equivalent immersion undercoating, countersunk mounting holes, industry standard height and width. Instructions, a cutout template and 30 large format labels are included, with over 500 individual labels available. Browse our marine electrical panels.
