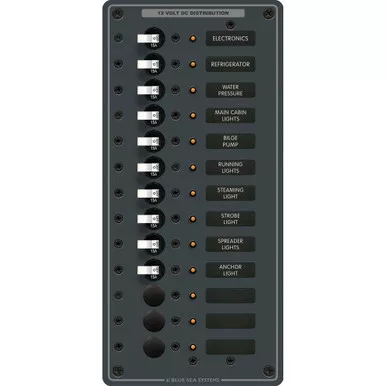

Blue Sea 8376 DC 13 Position Vertical Breaker Panel

Description

The Blue Sea Systems 8376 is a 13 position DC panel in vertical layout, supplied with ten 15A single pole breakers and white switches. Vertical is the useful part: it fits a tall narrow space beside a companionway or in a locker where nothing wide will go.

Positive, negative and grounding buses are installed with the panel fully pre-wired. Circuit label positions are backlit as standard, no kit needed, and ON indicating LEDs are fitted in every position. Versions with analog meters can be taken to 24 volts later by the owner using the 8240 or 8243 meters, and metered panels include a toggle switch reading up to three battery banks.

Construction is heavy 1/8 inch 5052 aluminum finished in two-part polyurethane slate gray, over MIL-C-5541C or equivalent immersion undercoating. Mounting holes are countersunk throughout and the panel uses industry standard height and width. Instructions, a cutout template and a set of 30 common large format labels are included, and over 500 individual labels are available. Explore our full range of marine electrical panels.
