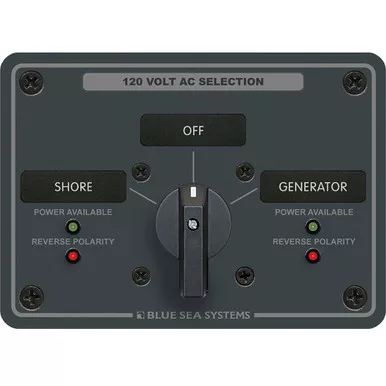

Blue Sea 8367 AC 30A 2-Source Rotary Switch Panel

Description

The Blue Sea 8367 AC Rotary Switch Panel provides manual selection between two 120V AC sources in a compact two-pole marine panel. It is intended for boats that need a positive source-transfer control but already have the required circuit protection installed elsewhere in the AC system.

The panel uses Blue Sea’s heavy-duty 9011 industrial-rated rotary switch with two source positions plus Off. Green power-available LEDs show which incoming sources are energized, while red reverse-polarity LEDs warn if a source is incorrectly wired. The selector provides intuitive one-hand operation and gives the operator a clear mechanical indication of which source is connected.

Heavy 5052 aluminum alloy construction and a two-part polyurethane slate-gray finish help the panel resist corrosion over long-term marine use. Because the 8367 focuses on source selection rather than over-current protection, correctly sized main breakers and other required protective devices must be installed separately. For boats transferring between two shore or generator sources, the 8367 provides a compact, clearly indicated switching panel. More options in our marine switch panels.
