Blue Sea 8120 5 Position Panel with USB and Socket

Description

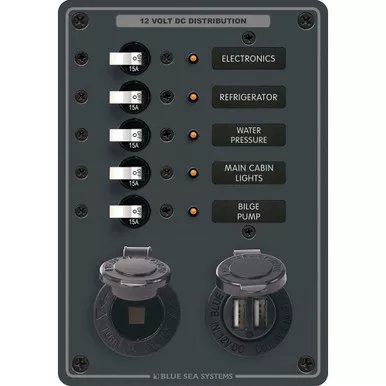

The Blue Sea Systems 8120 is a 5 position 12V panel with a dual USB output and a 12V dash socket built into the face. Phones, tablets, handheld VHFs and portable lights have become part of the load on every boat, and running them through an adapter wedged into a cigarette socket is not really a system.

It sits in Blue Sea Systems’ battery management panel range, meant for taking current from a high amperage source and dividing it into lower amperage circuits. Breakers are magnetic hydraulic and trip free, so an overload trips them whether or not the switch is being held on. The USB output accepts 12 or 24 volt input, so it works on either system voltage.

Maximum amperage is 50A, nominal voltage 12V DC. Positive, negative and grounding buses are installed with the panel fully pre-wired, and ON indicating LEDs and backlit labels are standard. At 7.5 inches tall by 5.25 wide by 2.5 deep it suits a helm console or a small cabin bulkhead. The panel and its instruction manual are what ship in the box. Browse more marine electrical panels.
