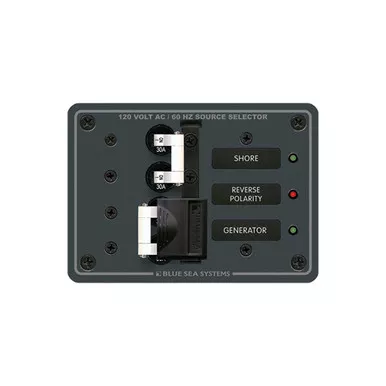

Blue Sea 8032 AC 30A Toggle Source Selector Panel

Sale!
Blue Sea 8032 AC 30A Toggle Source Selector Panel

Blue Sea 8032 AC 30A Toggle Source Selector Panel

Original price was: $177.56.Current price is: $126.32.

Category:

Description

The Blue Sea Systems 8032 is a 30A AC toggle source selector for choosing between two 120V AC inputs, sized for the 30A shore service most boats under about 40 feet are wired for. The panel measures 3.75 inches tall by 5.25 wide.

Two 7238 A-Series white toggle double pole 30A breakers handle the two sources, with a lockout slide installed so both can never be closed together. Maximum panel amperage is 50 amperes even though the breakers are 30A units, so the panel itself is not the limiting factor.

A red reverse polarity LED and two green 120V AC LEDs are fitted. Hot, neutral and safety ground buses are installed and the panel ships fully pre-wired, with backlit circuit label positions as standard and ON indicating LEDs throughout. The 8031 basic AC panel label set with 30 labels is included. More options in our marine electrical panels.
