Blue Sea 4304 WeatherDeck 4 Position Fuse Panel

Description

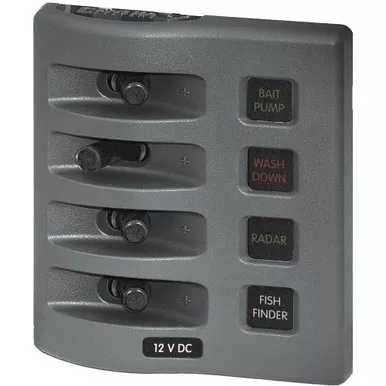

The Blue Sea Systems 4304 is a WeatherDeck 4 position fuse panel in gray, the smallest of the WeatherDeck fuse panels at 4.3 inches tall by 3.88 wide by 2.5 deep, with a 60A cumulative rating and 15A protection per circuit at 12V DC.

Fuses rather than breakers handle protection, using standard ATO/ATC blades that cost little and can be carried as spares in a drawer. The bicoloured label LEDs report circuit state directly: red for off, green for on, and unlit where a fuse has gone. Nothing lit anywhere points at the panel supply rather than an individual circuit.

The front carries an IP67 rating when mounted with its watertight gasket, protected against immersion to 1 metre for half an hour. Label backlighting has an independent circuit for remote switching and dimming, and the panel can be fitted in any of four orientations. Four 4150 SPST ON-OFF toggle switches, four 4138 black boots, four 5242 15 amp ATO/ATC fuses and the 4215 waterproof DC label kit come with it. See the rest of our marine electrical panels.
