Blue Sea 1225 12V DC 8 Position Horizontal Panel

Sale!
Blue Sea 1225 12V DC 8 Position Horizontal Panel

Blue Sea 1225 12V DC 8 Position Horizontal Panel

Original price was: $311.16.Current price is: $188.72.

Category:

Description

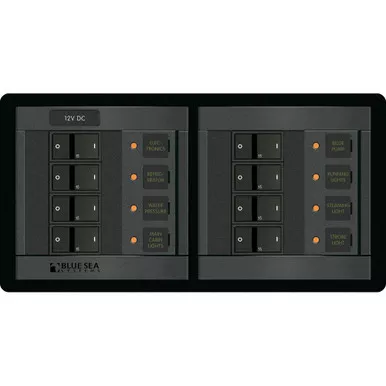

The Blue Sea Systems 1225 is an 8 position 12V DC panel in horizontal layout, 9.25 inches wide by 4.75 tall and 3.00 deep, weighing 3.84 pounds. Horizontal suits a wide shallow space, under a helm shelf or across the front of a console, where a tall panel would run out of room.

Eight 7403 A-Series flat rocker single pole 15A breakers are installed. Maximum amperage is 100A per bus, and that rating assumes wire and fuses sized properly for the job. The 4205 basic DC label kit with 30 black square labels is included.

This one sits in a range covering 4 to 32 branch circuits, all supplied with 15 ampere breakers and offered with voltmeters, ammeters or digital multimeters, so a boat can run matching panels of different sizes without them looking like a collection of afterthoughts. Compare it with our other marine electrical panels.
