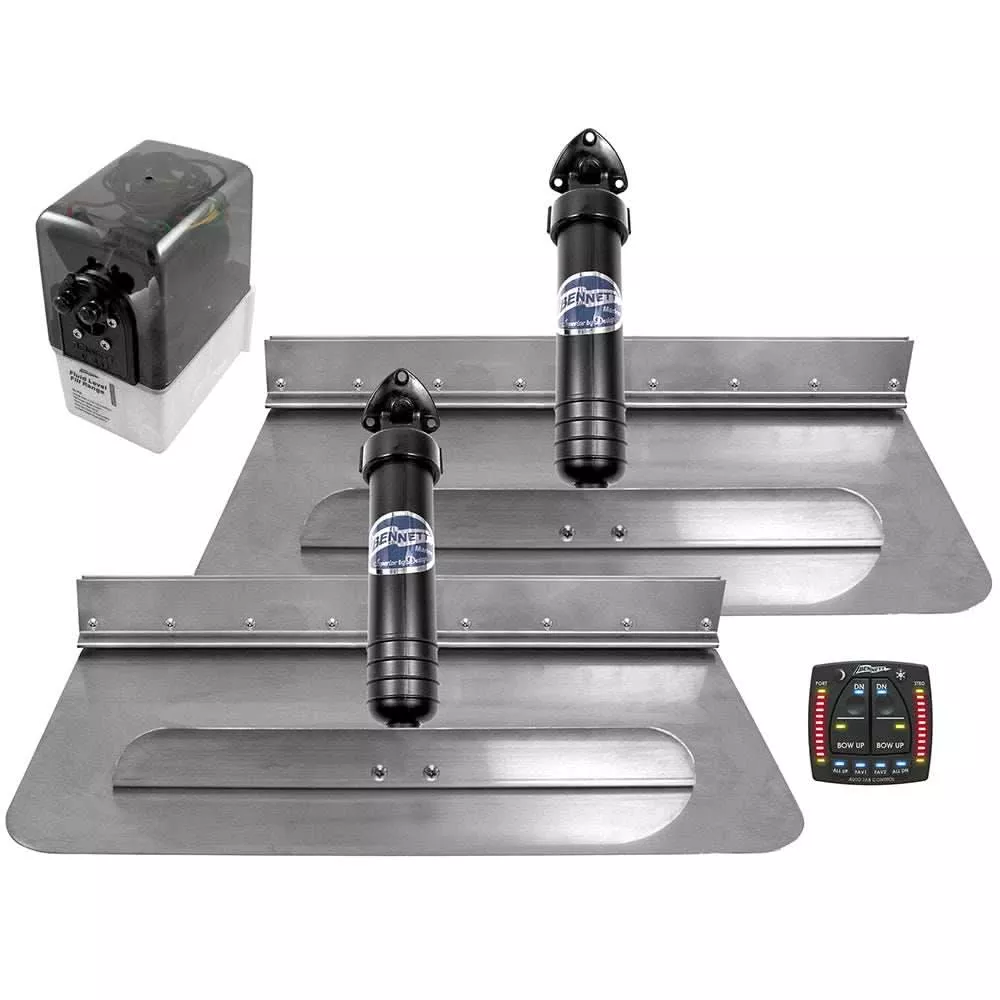

Bennett 2412ATP 24 x 12 Hydraulic Trim Tabswith ATP

Description

Bennett 24 x 12 Hydraulic Trim Tabs with Auto Trim Pro (ATP) – 2412ATP

Enhance your vessel’s performance with the Bennett 24 x 12 Hydraulic Trim Tabs with Auto Trim Pro (ATP) — a rugged, premium maritime solution engineered for serious boaters. Designed by Bennett Marine, this complete hydraulic trim tab system delivers unmatched control, stability, and handling across a wide range of sea conditions.

Built for power and precision, the 2412ATP kit helps your boat get on plane faster, maintain optimal running attitude, and improve fuel efficiency by fine-tuning the bow angle with ease. Its hydraulic design offers fast, reliable actuation while enduring the harsh marine environment for extended service life.

Equipped with Auto Trim Pro (ATP) technology, this trim tab system automatically adjusts to changes in speed, sea state, and load distribution — giving you smoother rides and better equilibrium without constant manual corrections.

Key Performance Features

• AutoTrim Pro (ATP) Control: Automatically levels your boat based on pre-set “favorite” positions. It features LED indicators for tab position, manual override, and a “Hole Shot” mode that gets the bow down faster during acceleration.

• Massive 24×12 Planes: The wide 24″ span is highly efficient, generating lift with minimal drag. These are constructed from heavy-duty 304 stainless steel with Bennett’s interlocking hinge design for maximum transom strength.

• Hydraulic Precision: Unlike electric tabs, Bennett’s hydraulic actuators can withstand thousands of pounds of force without slipping, making them the gold standard for offshore and heavy-duty use.

• Auto Tab Retraction (ATR): Automatically pulls the tabs to the full “Up” position when you turn off the ignition, protecting the stainless steel from marine growth and preventing damage during trailering.

• Durability & Serviceability: Hydraulic systems are famous for longevity. If a component eventually fails, the individual parts (valves, tubing, actuators) are inexpensive and easy to replace compared to sealed electric units.

Technical Specifications

In The Box

• 2 x 24″ x 12″ Stainless Steel Trim Planes

• 2 x Hydraulic Actuators (A1101A)

• 1 x Hydraulic Power Unit (HPU) (V351HPU1)

• 1 x AutoTrim Pro Helm Display & Control Unit

• 20′ Hydraulic Tubing & 25′ ATP Wire Harness

• All Installation Hardware & Templates
