Bennett 129ATP Hydraulic Trim Tab Complete Kit with Auto Trim Pro

Description

Bennett 129ATP Hydraulic Trim Tab Complete Kit with Auto Trim Pro

The Bennett 129ATP is a comprehensive, professional-grade boat leveling system designed for vessels typically ranging from 19′ to 24′. This “Complete Kit” combines Bennett’s legendary hydraulic hardware with the AutoTrim Pro (ATP) intelligent control system, giving you both the power of hydraulic trim tabs and the convenience of automatic “cruise control” for your boat’s attitude.

Automated Excellence for Your Vessel

The standout feature of this kit is the AutoTrim Pro controller. It uses an internal gyro sensor and accelerometer to monitor your boat’s pitch and roll. Once you find your ideal running angle, you can save it as a “Favorite,” and the system will automatically adjust the tabs to maintain that angle, correcting for shifting passengers, wind, or sea conditions without any manual input.

Key Features:

• Automatic Leveling: Reduces bow rise, corrects for listing, and gets the boat on plane faster by managing the tabs automatically.

• 12″ x 9″ Trim Planes: Crafted from heavy-duty 304 stainless steel, these tabs are designed for maximum lift and durability in harsh marine environments.

• Hydraulic Power & Precision: Unlike electric systems, Bennett’s hydraulic actuators provide incredible holding power and are known for their extreme longevity and low maintenance.

• Auto Tab Retraction: Automatically retracts the trim tabs when the engine is turned off, protecting them from damage during docking or trailering.

• LED Position Indicators: The helm display features built-in LED lights that show you exactly where your tabs are positioned in real-time.

• Manual Override: Allows the captain to take full manual control at any time; auto-mode is easily resumed with a single button press.

Technical Specifications:

• Model Number: 129ATP

• Application: Recommended for boats 19′ to 24′ (5.8m – 7.3m)

• Tab Size: 12″ (Span) x 9″ (Chord)

• Voltage: 12V DC

• Actuator Type: Hydraulic

• Box Weight: 23 lbs

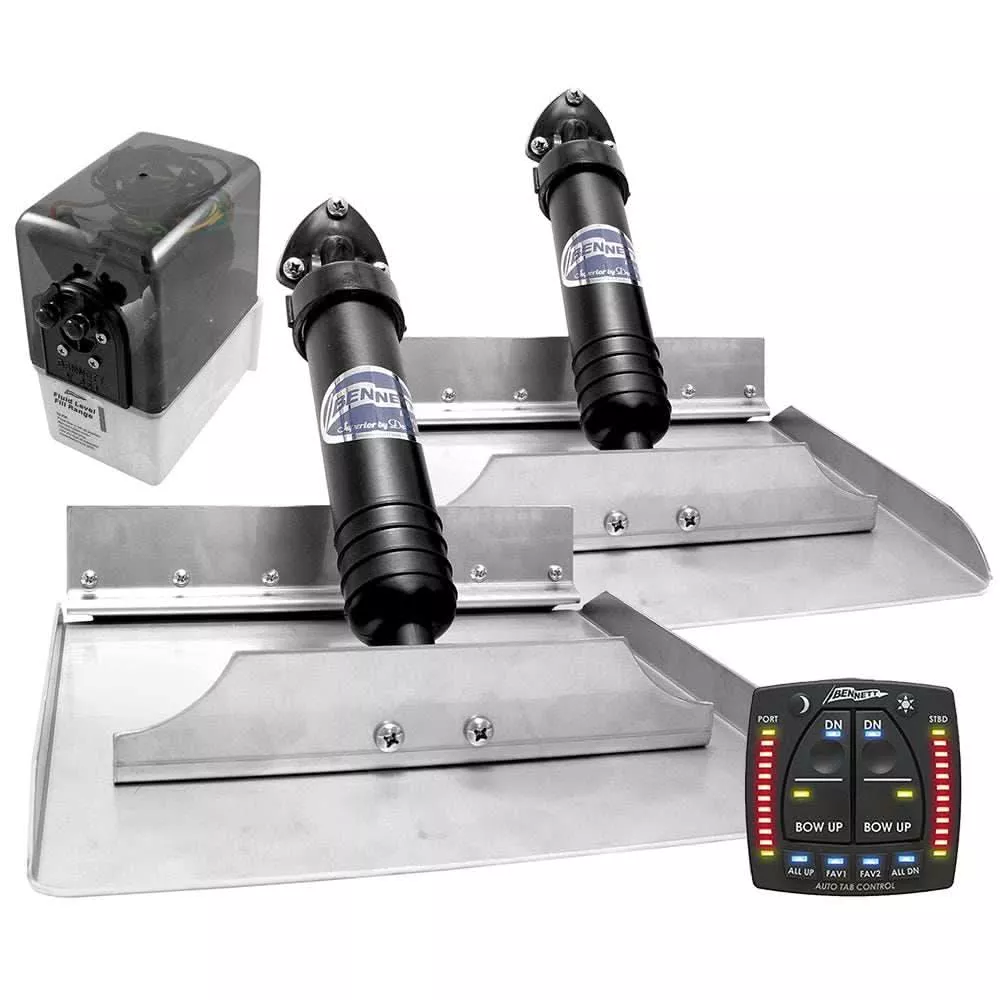

What’s Included in the 129ATP Kit:

• (2) 12″ x 9″ Stainless Steel Trim Plane Assemblies

• (2) A1101A Hydraulic Actuators

• (1) Hydraulic Power Unit (HPU)

• (1) AutoTrim Pro Helm Control Display (AP000A1HA)

• (1) AutoTrim Pro Control Unit (Processor)

• (20′) Hydraulic Tubing and all necessary mounting hardware/wiring

Pro Tip for Installation:

During the initial sea trial, make sure to calibrate the AutoTrim Pro once your boat is at its ideal cruising speed and level attitude. Setting this “Zero Point” is crucial for the system to accurately recognize when the boat is listing or the bow is too high.
