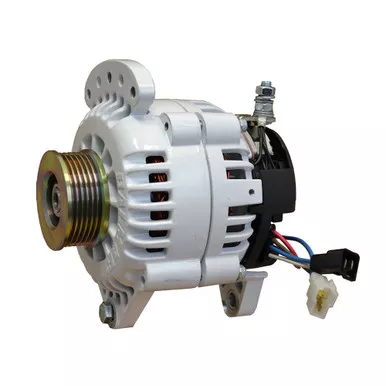

Balmar 100A Saddle Mount Alternator, K6 Pulley

Description

The Balmar 60 Series 100A Saddle Mount Alternator provides a 12V high-output charging upgrade for marine engines using a 3.15-inch dual-foot Hitachi-style mount and K6 serpentine drive. The 100-amp output is suitable for vessels that need stronger battery-bank recovery than a standard alternator can provide, particularly when substantial house loads are present.

A K6 six-rib serpentine pulley gives the alternator a broader belt-contact area than a conventional single-V pulley, helping the drive system transfer the additional mechanical power demanded by higher charging output when paired with matching engine pulleys and proper belt tension. The alternator also uses isolated grounding, separating its electrical ground path from the case.

The 3.15-inch saddle mount is commonly associated with Yanmar, Westerbeke, Lehman, and Perkins-Sabre engines. Balmar 60-100-SR-IG is the listed replacement reference. Before installation, the existing mounting bracket, serpentine pulley alignment, regulator compatibility, charging cables, and battery-bank requirements should be verified.

For owners who already have compatible external regulation and a K6 belt system, this Balmar 100A alternator provides a focused charging-power upgrade without purchasing the regulator and sensor package included in a full kit. There is more in our marine alternators.
