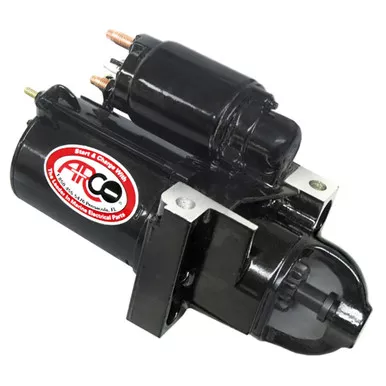

ARCO Standard Duty Inboard Starter with Gear Reduction

Description

The ARCO marine starter is an application-specific replacement designed to restore reliable engine cranking on the compatible engines identified for this part. Standard Duty Inboard Starter with Gear Reduction The inboard starter that will fit Mercruiser, Volvo Penta, OMC, Marine Power, and others. All GM engines with 14″ flywheel using a staggered bolt pattern. Recommended for late model 3.0 Liter with 14″ flywheel using a tail bracket. Can also be used in place of a 10MZT style starter with two long bolt staggered patterns. Mounting bolt kit MBK450 required if replacing 10MT. Correct starter selection depends on more than engine brand, so drive gear, rotation, flywheel, mounting pattern, engine family, and production year should be confirmed where applicable.

ARCO starters are dynamically tested and packaged for out-of-the-box performance, with corrosion-resistant finishes and marine-oriented construction supporting onboard electrical service. The manufacturer emphasizes using a fully charged battery and clean electrical connections because low voltage or excessive resistance can damage the starter and solenoid while reducing cranking performance.

Verify the complete engine application and starter specifications before ordering, including tooth count, rotation, mounting pattern, flywheel size, voltage, and replacement cross-reference when listed. Disconnect battery power before service, clean cable terminals and grounds, and tighten all electrical and mounting connections correctly. After installation, confirm strong, consistent cranking without abnormal noise or gear engagement issues.

• The starter is designed as a replacement for the specified marine engine application.
• ARCO dynamically tests starters before packaging.
• A fully charged battery and clean connections help deliver proper cranking current.
• Corrosion-resistant finishes support service in onboard environments.
