Aleko Chain-Driven Sliding Gate Opener – AC1100 Starter Kit

Description

The ALEKO Chain-Driven Sliding Gate Opener is a powerful and dependable automation solution designed for residential and commercial sliding gate systems. Equipped with a robust 450W motor, this opener is capable of operating gates weighing up to 2600 lbs. or measuring up to 52 feet in length, delivering smooth, quiet, and efficient gate movement.

Built with advanced automation and safety features, the system includes a midway mode for partial opening access, automatic stop-and-reverse functionality for obstruction safety, and rolling code technology to help prevent unauthorized access. The built-in adjustable auto-close feature allows the gate to close automatically after 30, 60, or 90 seconds for added convenience and security.

Two wireless remote controls are included, allowing users to conveniently operate the gate from up to 100 feet away. In the event of a power outage, the included emergency release keys provide manual gate access when needed.

The kit includes a 20-foot chain for standard installations. Additional chain lengths can be purchased separately for larger gates.

Product Features

• Powerful 450W motor
Supports gates up to 2600 lbs. or 52 feet long.

• Smooth and quiet chain-driven operation
Provides reliable automated gate movement with reduced motor noise.

• Midway mode for quick access
Allows partial gate opening for pedestrian or limited vehicle access.

• Automatic stop-and-reverse safety function
Helps prevent accidents when obstructions are detected.

• Adjustable auto-close settings
Selectable automatic closing intervals of 30, 60, or 90 seconds.

• Rolling code security technology
Helps prevent unauthorized remote access.

• Emergency release keys included
Allows manual gate operation during power interruptions.

• Solar compatible system
Can operate with optional solar panels and backup battery configurations.

• Two remote controls included
Provides convenient wireless gate operation up to 100 feet away.

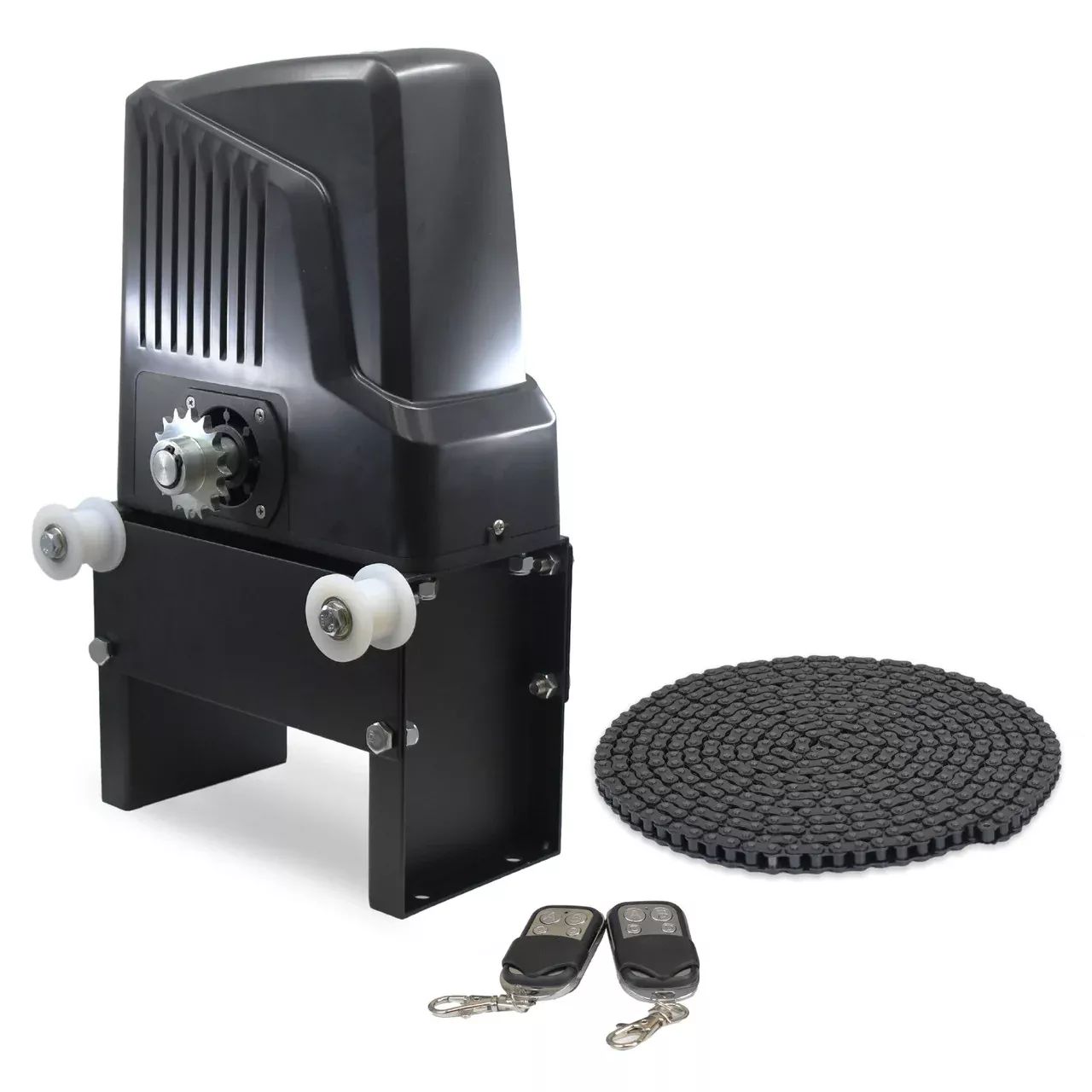

Included Components

• (1) AC1100NOR-M Sliding Gate Opener
• (1) 20-ft. Chain
• (2) 433 MHz Remotes
• (2) Emergency Release Keys
• (1) Set of Assembly Hardware
• (2) 8.5 x 11” Warning Signs

Technical Specifications

Specification	Details
Gate Capacity	Up to 2600 lbs. or 52 ft.
Compatible Gates	ALEKO Sliding Gates
Rated Power	450W
Power Input	110–120V, 60Hz
Motor Voltage	24V DC
Gate Speed	8 in./sec
Operating Temperature	0°F to 120°F
Solar Compatible	Yes
Maximum Motor Run Time	90 seconds
Auto-Close Settings	30 / 60 / 90 seconds
Remote Frequency	433 MHz
Assembly Required	Yes
Warranty	1-Year Limited Warranty

Power Configuration Options

• AC Electricity Only*
• Solar Panels + Batteries*
• AC Electricity + Backup Batteries*
• AC Electricity + Solar Panels + Backup Batteries*

*AC cord, solar panels, and batteries not included.

Designed for reliable performance, enhanced security, and smooth automated operation, the ALEKO Chain-Driven Sliding Gate Opener provides a complete automation solution for large residential and commercial sliding gate systems.
