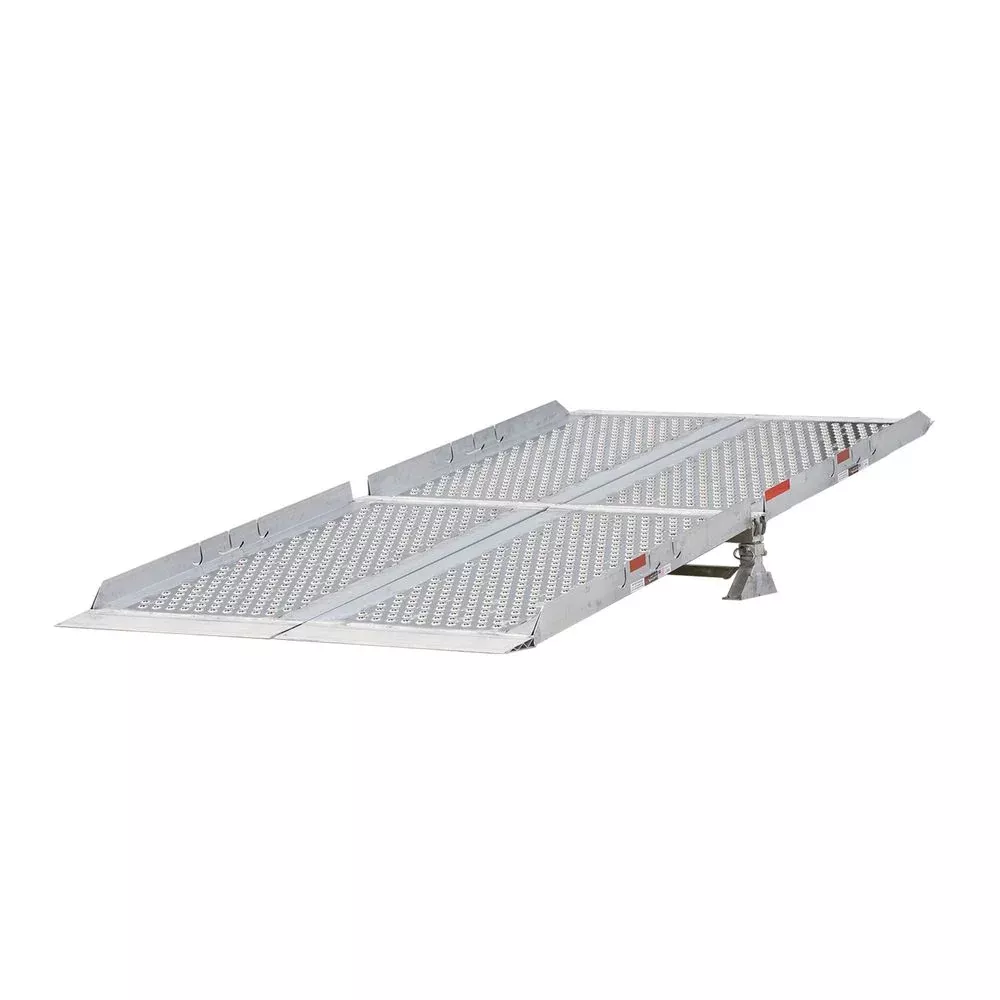

Portable Aluminum Modular Yard Ramp System – 7’ Width
Features
Compact Modular Design: All components stack neatly on a single pallet for easy storage and transport. Ideal for seasonal use or moving between facilities, the system fits in a pickup truck bed or a 4 x 8 trailer and ships economically via common carrier.
Fast, Tool-Free Setup: Two people can assemble the ramp in as little as 15 minutes. Simply position the adjustable height stands, attach the ramps with pin-on ends, and secure with the included ratchet safety straps.
EZ Traction Punch-Plate Surface: Raised, serrated punch plates grip forklift, car, or equipment tires, while allowing rain, snow, and mud to pass through for safe operation in all weather.
Adjustable Height Stands: Ramp stand heights adjust incrementally to accommodate dock or truck heights from 15″ to 32″, ensuring smooth transitions for safe loading and unloading.
Integrated Safety Rails: 4″ high rail guards provide additional structural support and safety along the ramp edges.
Smooth Ground and Vehicle Transitions: Pin-on ends secure ramps to the stands. One ramp includes a plate end for a smooth truck/trailer transition, while another includes a knife foot for a smooth ground transition.
Specifications
Made in the USA
Length: Configurable 8′ or 15′ 4″
Width: 7′ (usable width 6′ 10″)
Minimum Height: 15″
Maximum Height: 32″
Weight: 834 lbs.
Maximum Capacity: 25,000 lb. total
Material: Aluminum
Lift Type: Height-adjustable stands
Guard Rail Height: 4″
More Information This modular yard ramp system provides quick and safe loading access for box trucks, trailers, or docks without the need for a permanent loading dock. The modular design allows flexible ramp lengths of 8′ or 15′ 4″ to suit various vehicle sizes. The system ships on a single pallet and includes two 18′ ratchet safety straps for secure attachment. Patent pending.
Key Benefits
Modular, single-pallet design for easy storage and transport
Tool-free assembly in under 15 minutes
EZ Traction punch-plate surface ensures maximum grip in all weather
Fully adjustable for truck or dock heights from 15″ to 32″
